ISP Programming ATMEGA32 in MAX4

Please made step by step

1. Download ISP programm http://sp3swj.googlepages.com/ISP_old.zip

2. Unzip ISP programmer

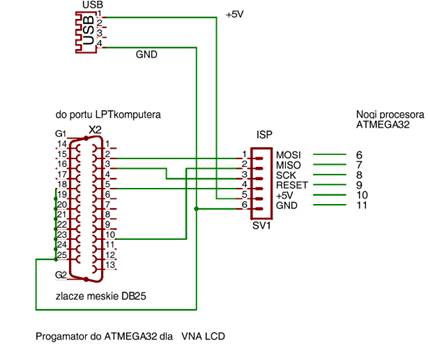

3. Prepare ISP programming cable

4. Check if 5V supply is OK

5. Check if is no any SHORT circuit to GND on MAX4 board on all ISP pins

6. Using external power supply 5V check power consumptions MAX4 board ( not bigger than ~~100 mA)

7. Connect ISP cable to PC LPT port

8. Connect ISP cable do MAX4

9. Connect USB supply to PC

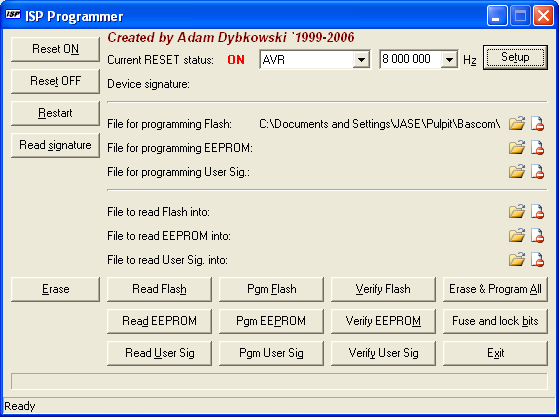

10. Start ISP programm

11. Set AVR and proper Xtal frequency 11.0592 MHz

12. Run SETUP menu and chose AT-Prog

13. Chose correct Parallel port address

14. Confirm OK setup

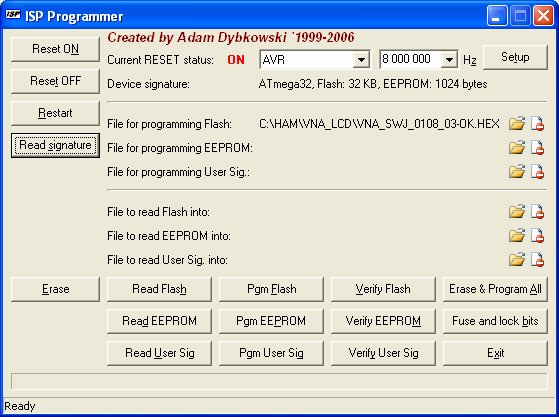

15. Run READ SIGNATURE

16. You see info about Your processor – that’s mean correct communications

17. If you not see info

that mean no ISP communications, check all cable and program settings
Communications must work if all is OK mounted

18. Chose (click on folder ICON) File for programming Flash from locations
http://www.sp2swj.sp-qrp.pl//SP3SWJ/VNA_MAX4_pliki/HEX/
for first start better use MAX4_SERIAL_ONLY.HEX

19. If You have connected LCD You can use other HEX file

20. Remember – all HEX fila is 100% correct and tested !!!!

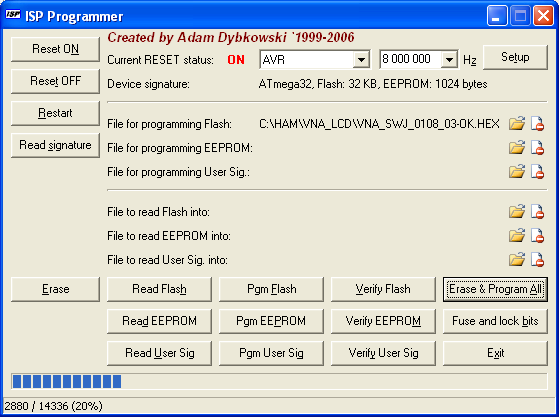

21. Run function Erease & Program All

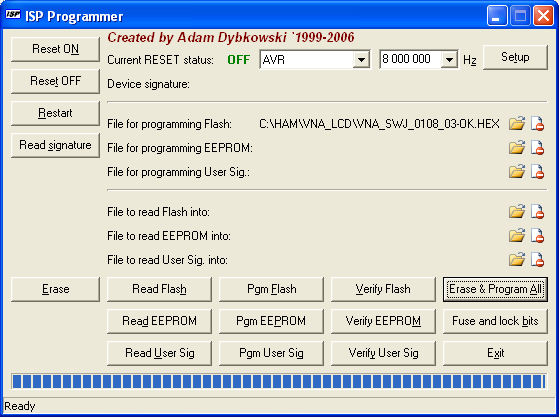

22. Wait until Finish

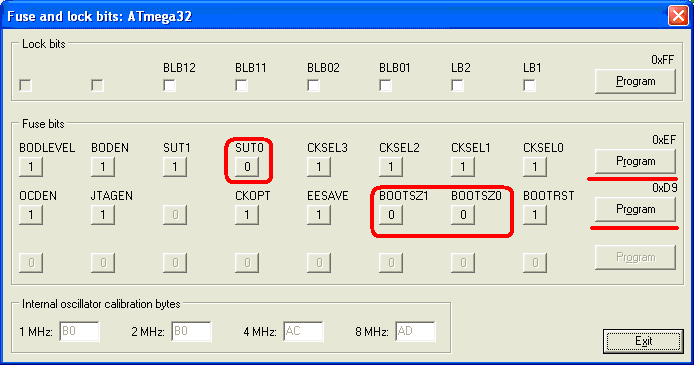

23. Run Fuse and Lock bits

24. Set all BITS as picture above and confirm using Program

25. If You finish – press Exit

26. Close ISP program

27. Disconnect USB suppy

28. Disconnect all cable

29. Programming Finished

http://sp3swj.googlepages.com/max4
